I’ve been testing the Luba 2 AWD for weeks, installing it on a two-lawn property and pushing it through mapping, firmware updates, obstacle tests, and long cutting passes. The Luba 2 brings RTK-grade GPS together with a binocular vision module, and it feels like a thoughtful step forward for anyone who wants a true “set it and forget it” lawn solution that works on slopes, zones, and tricky transitions between lawns.
What’s in the Box and Optional Extras
The Luba 2 package includes the mower, the charging base, the RTK station tall pole, the binocular vision module, spare blade packs, two safety keys, and a handful of pegs and ground screws. There are two power supplies: one for the charging station and a separate adaptor if you want to power the RTK station separately.
Optional extras worth considering:
- Charging base roof — a simple cover to protect the base unit from heavy weather.
- Wall mount for the RTK station — handy when you want the RTK higher on a building façade for better satellite visibility.
- Pack of spare blades — 24-piece packs that supply several blade changes.
- Solar power module for the RTK station — coming soon; allows you to mount the RTK without running a mains cable.
The new RTK station is a notable improvement. It’s now IPX7 rated, and it has Wi-Fi built in. That lets you update the RTK remotely and, combined with a 4G SIM slot in the mower, extend the RTK-to-mower effective range from the old 150 meters up to several kilometers in the right configuration.
Mammotion 2025 Black Friday Sale is now on – Great Savings and BEST price all year.
First Assembly: Camera and Bumper
Assembly is very straightforward. There are only two items you need to attach to the robot before the first run: the vision module (camera) and the front bumper. Luba includes a compact hex/Phillips driver so you don’t need any extra tools.

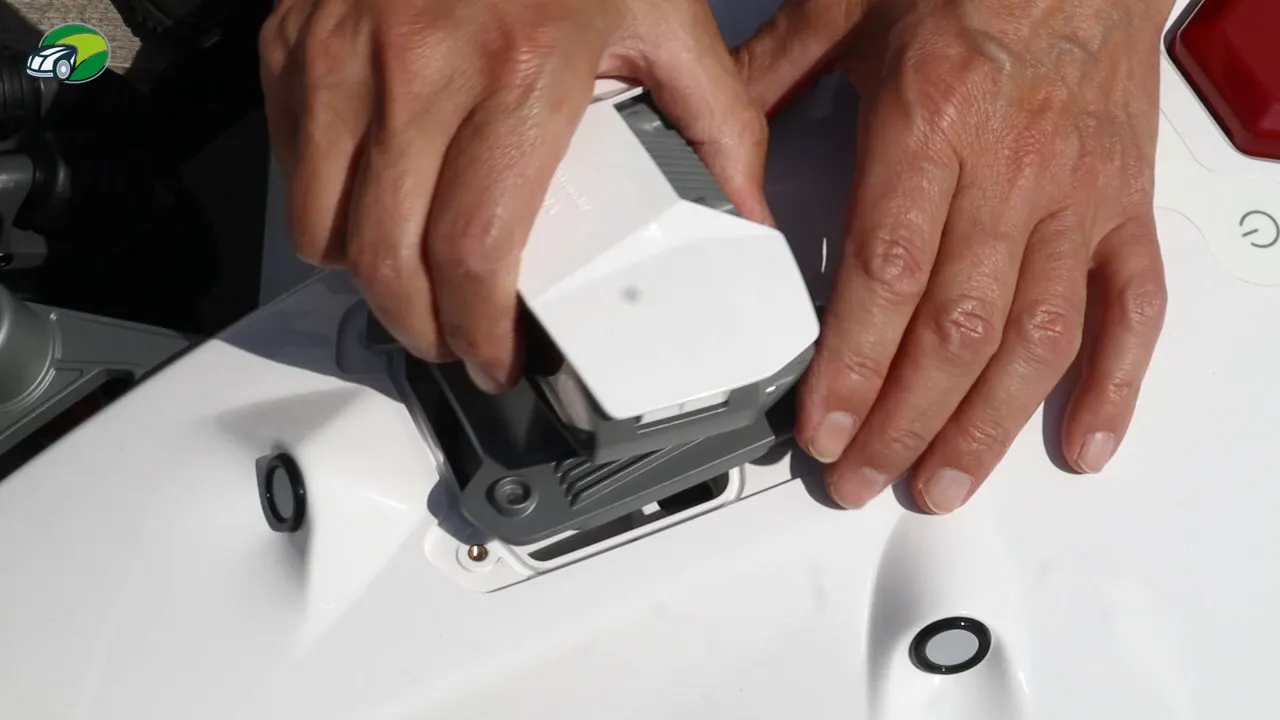

Installing the vision module:
- Remove the top cover screws; the screw heads are the same ones you’ll use to refit the module.
- Plug the camera connector into the matching cable (black-to-black). The plug only fits one way, so it cannot be reversed.
- Seat the module and fasten the four screws back in place.
Tip: the cavity under the top cover is also the perfect spot to tuck an AirTag or similar tracker if you want a discreet theft-deterrent.
Attaching the bumper:
- Align the bumper with the front of the mower. There are two release/clip buttons on either side that you press while sliding it into place.
- Seat the bumper until it clicks in, then secure it with the two hex screws provided.
That’s it — mechanically the Luba 2 is ready to power on and start the software setup. The emphasis here is on simplicity and field-service friendliness; there’s nothing delicate or awkward about the mechanical fitments.
There are three main navigation philosophies used across robotic mowers today:
- Boundary wire — a traditional physical perimeter. Very reliable but takes time to install.
- Vision-only — cameras see the perimeter and obstacles. Works well in open, consistent yards but struggles in low light or very cluttered scenes.
- RTK / GPS guidance — extremely precise GPS positioning, often used to handle larger areas without wires.
Luba 2 fuses RTK GPS and binocular 3D vision. That means the RTK provides centimetre-level positioning across large areas, and the vision module steps in whenever satellite visibility drops (heavy tree cover, buildings, or situational multipath). The result is smoother navigation, fewer pauses, and better obstacle detection than an RTK-only or vision-only system alone.
On top of that, obstacle handling is multi-layered: ultrasonic sensors, the vision module, and a front bumper work together. The mower can slow before it encounters something, or avoid it completely depending on the configured sensitivity.
Get Best Price Here
Key Specifications and How They Matter
Here’s the practical breakdown for the AWD 5000 model I tested.
- Coverage: Up to 5,000 m² of actual grass area. That’s a change from the earlier model where quoted area sometimes included non-grass travel zones.
- Zones: Supports up to 30 distinct mowing zones per mower configuration. Useful when you have multiple lawns, flower beds, or narrow channels.
- Battery runtime: 180 minutes of mowing per charge across the range of Luba 2 models.
- Cutting width: 40 cm (15.7 in) deck using two discs and replaceable blades.
- Cutting height range: Standard model: 25–70 mm (roughly 1–2.7 in). H models shift that range upwards for tall turf varieties common in North America.
- All-wheel drive + slope handling: AWD, capable of extremely steep gradients (advertised up to 80% or roughly 35°), with robust wheel suspension and omnidirectional caster wheels for tight turning.
- Connectivity: Wi-Fi for the RTK station and an optional 4G SIM in the mower; together they allow extended remote coverage and over-the-air firmware updates. The base RTK-to-mower radio range remains 150 m without those additions but can be extended significantly with 4G/Wi-Fi routing.
- App and voice: App control via Mammotion’s app, with scheduled support for voice assistants and integrations (Alexa/Google announced enhancements are rolling out).
One more note for future-minded buyers: Mammotion has announced a LiDAR-guided version of the Luba Mini for release in 2026. That will add a different sensing layer, particularly valuable for dense yards and precision landscaping tasks where LiDAR’s point-cloud fidelity can improve mapping and feature recognition.
Under the Deck: Cutting System and Edge Strategy

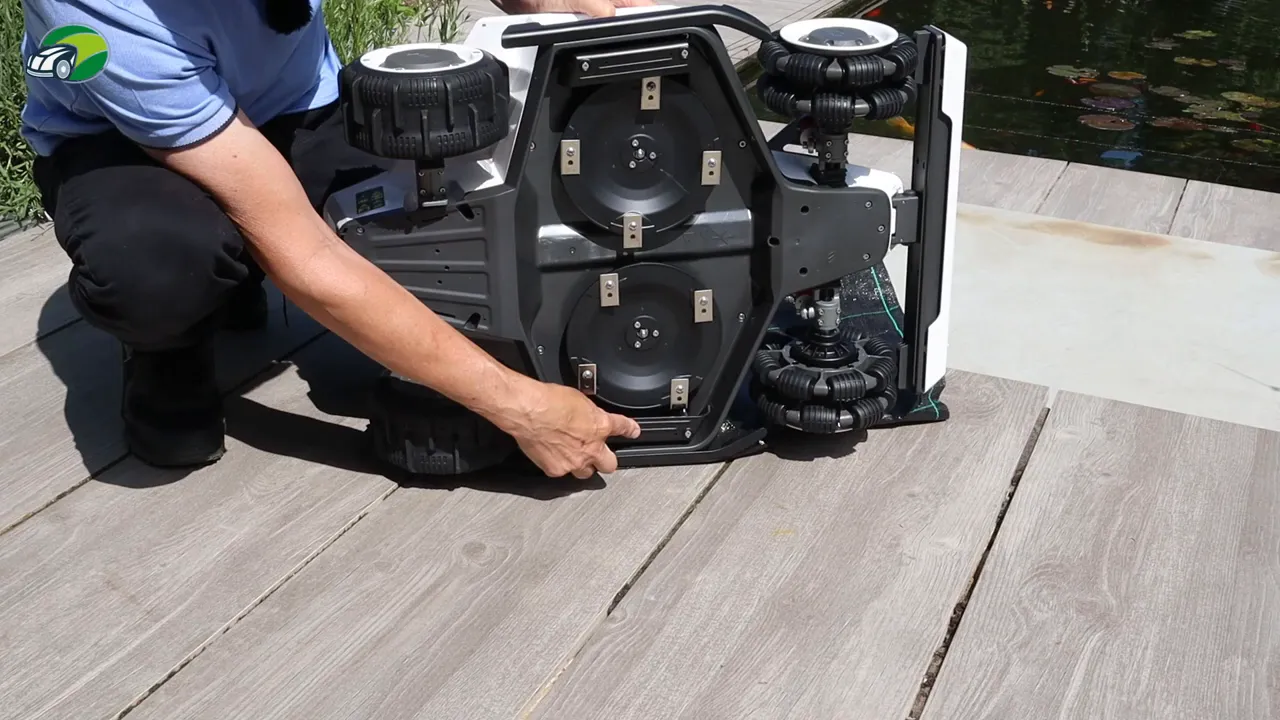

Under the deck are dual cutting discs, each holding four blades. The deck doesn’t carry blades out to the literal edge; instead, the mower uses a strategy of repeated edge passes to clean right up to the boundary. In practice this works well: configure an edge mode and the mower will make successively closer passes until the edge is tidy.
Blade changes are straightforward and inexpensive — keep spare packs on hand and swap them seasonally or whenever cut quality drops.
RTK and Charging Station Installation Walkthrough

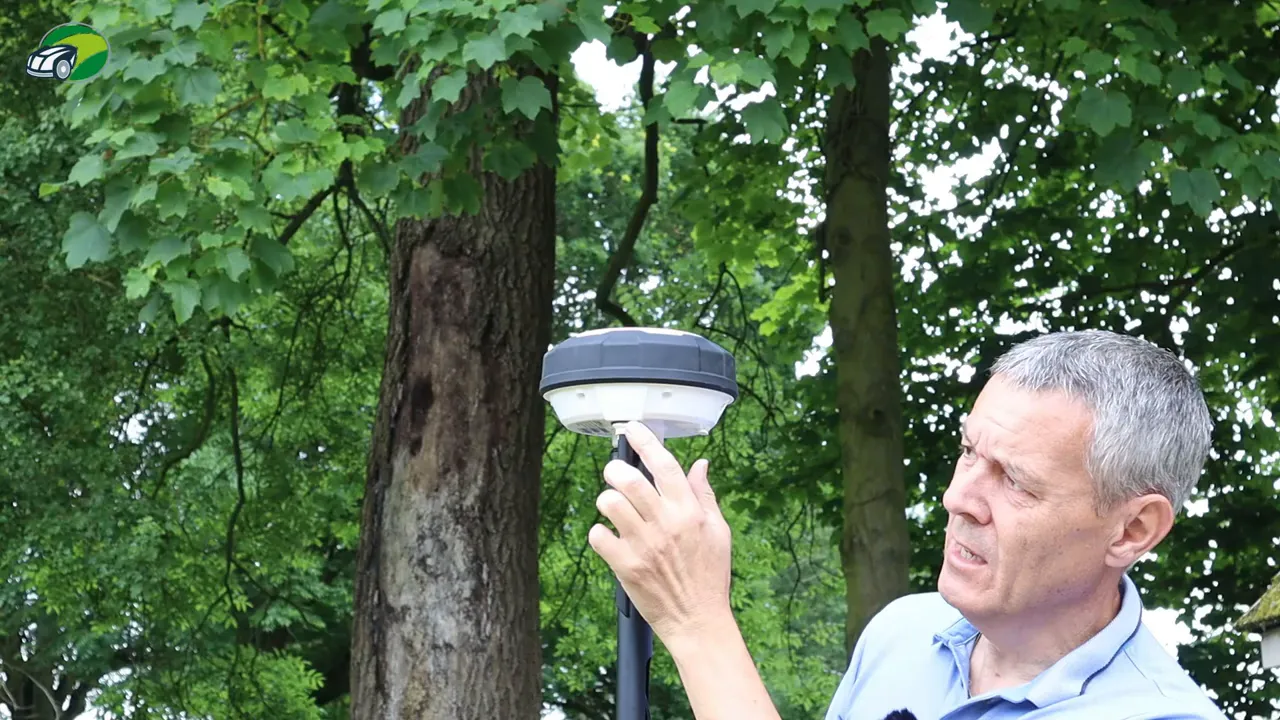

RTK station placement is one of the most important steps for reliable performance. A few practical tips from my installation:
- Place the RTK station and base where both can see as much of the sky as possible. Avoid tree canopies directly overhead.
- The RTK station does not need line-of-sight to the mower. It needs to see the same satellites as the mower — elevating the RTK can help ensure consistent satellite coverage.
- If you mount the RTK on a wall, use the wall mount accessory so the unit remains steady and unobstructed.

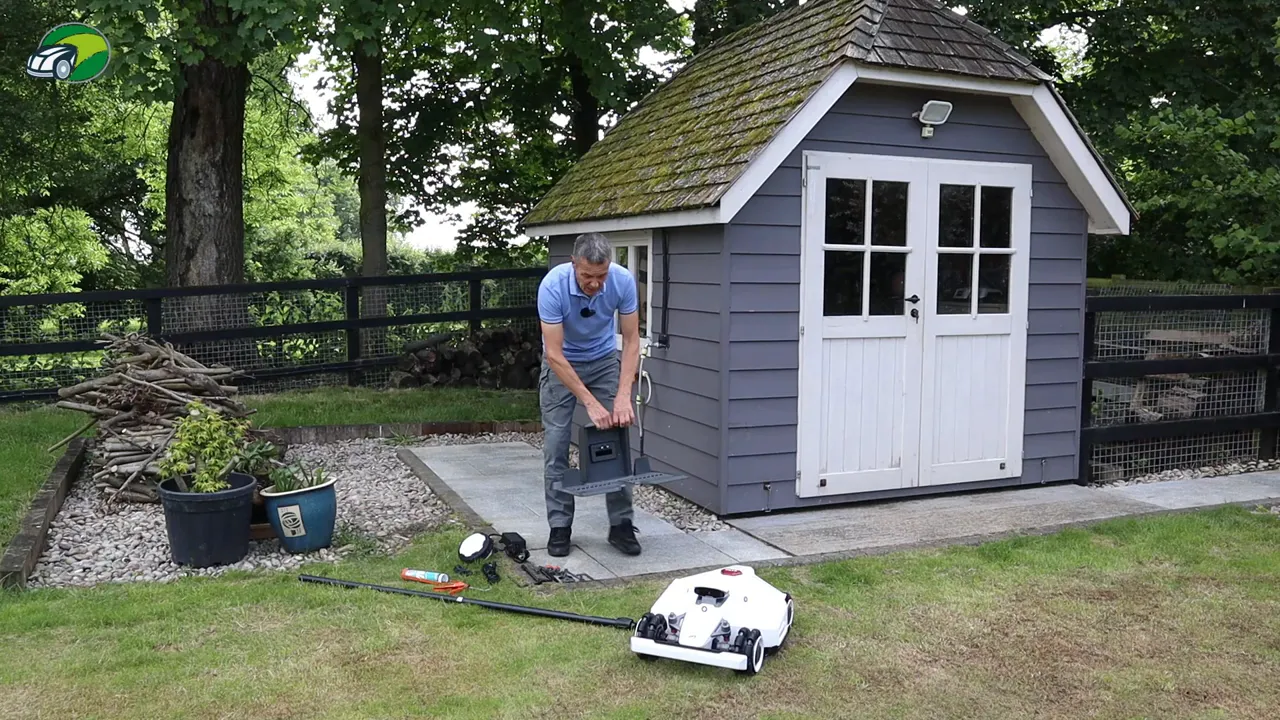

On my property I tested something many people ask about: can the charging base sit on a paved path rather than the lawn? I used silicone dabs to secure the base to the path and routed the RTK cable discreetly under paving stones to the rear of the station. Once sealed, the station sat flush and behaved perfectly.
If you add the optional roof it simply sits over the charging base and secures with two screws. It’s a tidy, easy-to-fit solution to keep the base cleaner and to extend the life of electronics exposed to the elements.
Get Best Price Here
Connecting Power and Antenna
There are two cable entries at the back of the charging base: one for mains power and another for the RTK power cable if you choose to power the RTK separately. The RTK pole and antenna screw together easily, and the cable clips Mammotion supplies keep everything neat along the pole.
App Setup and Firmware Updates
Getting the mower on Wi-Fi and up to date is a painless process. The Mammotion app walks through adding a robot via Bluetooth and connecting it to the home Wi-Fi. Firmware updates are frequent and important — Mammotion actively pushes updates that improve navigation, add features, and refine obstacle handling.
Two points to remember:

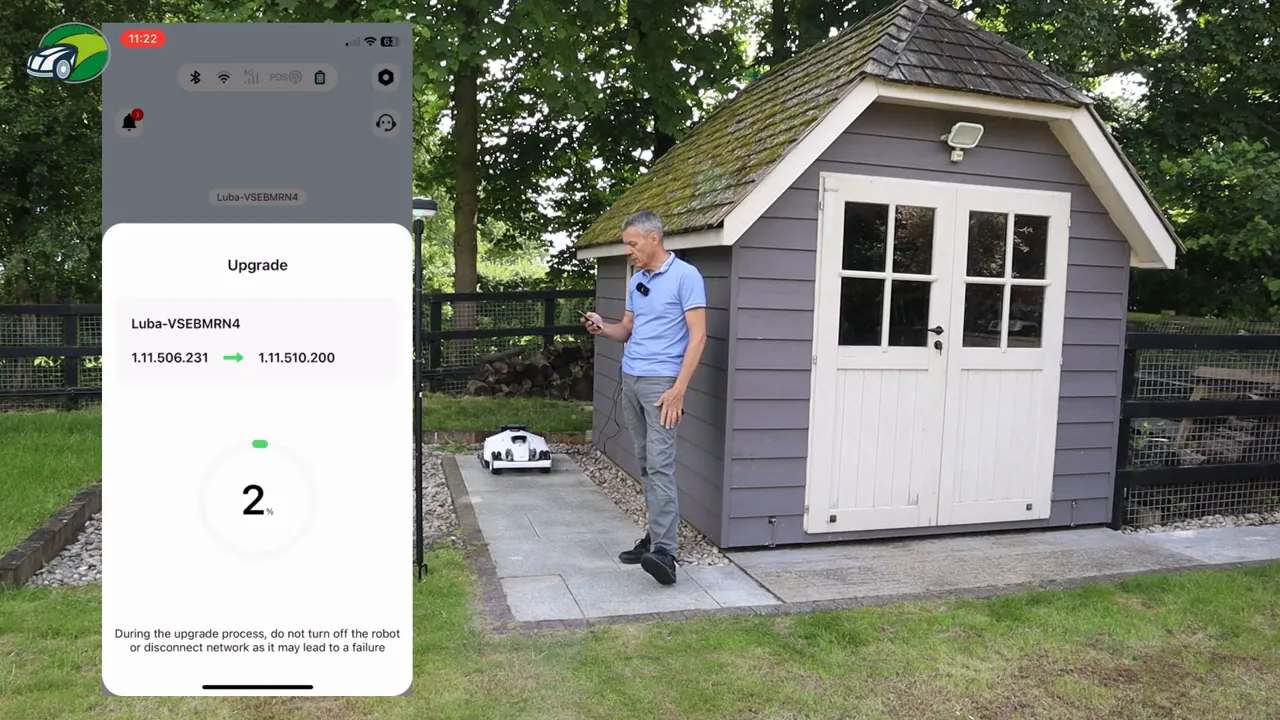

- Always put the mower on the charging base for an update — OTA updates use the Wi-Fi link and the mower needs a stable connection.

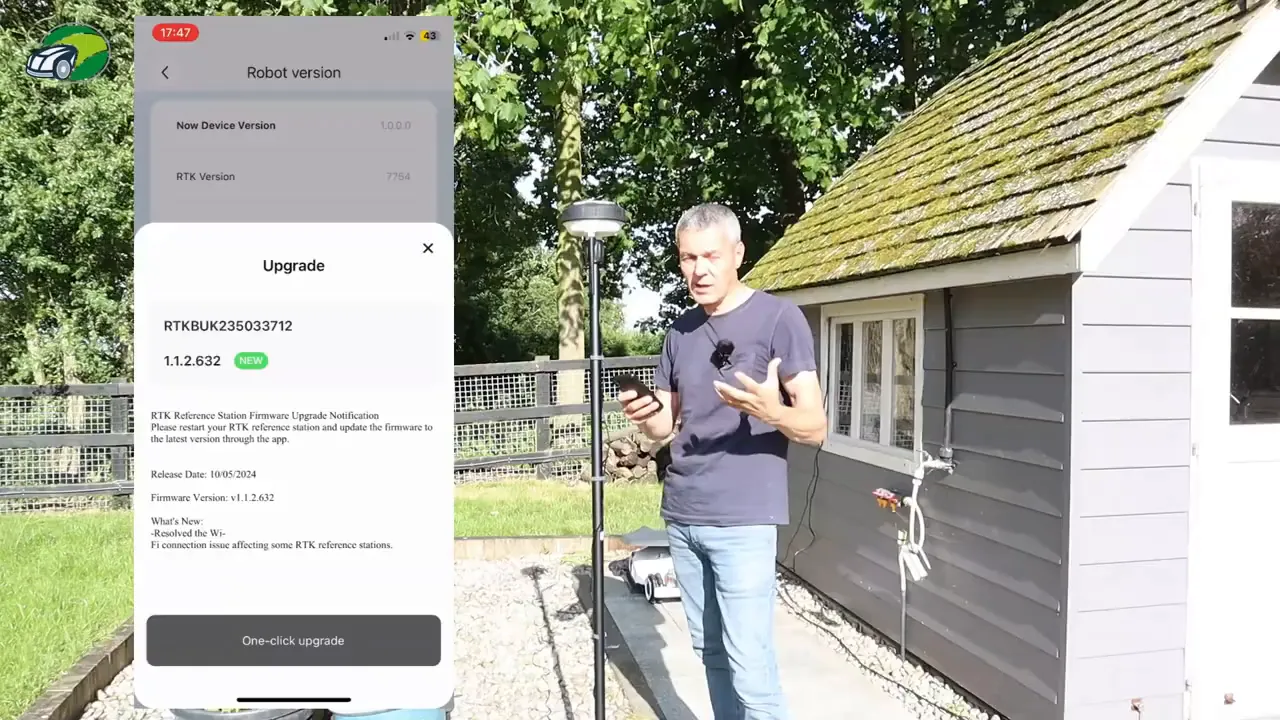

- Update the RTK station firmware too. With Wi-Fi on the RTK station, you can do that from the app without climbing onto roofs or running cables to the unit.
When the RTK is bound to Wi-Fi, you can toggle device settings and do remote upgrades from the same app area where the mower lives. One small convenience I appreciated was being able to turn off the RTK status LED for night use — a minor setting but useful if the station is visible from inside the house.
Mapping Your Lawns and Creating Channels
Mapping takes a different approach than boundary wire systems. You drive the robot around the perimeter of the area you want it to mow, and the mower records that as a task area. I mapped two areas: a rear lawn and a smaller front lawn separated by a path and a step.
Steps in my workflow:
- Use the app’s Create Area function and drive the mower slowly around the perimeter, hugging the edges if you want very tight cuts.
- When the mower has completed the loop, save the area and repeat for additional lawns.

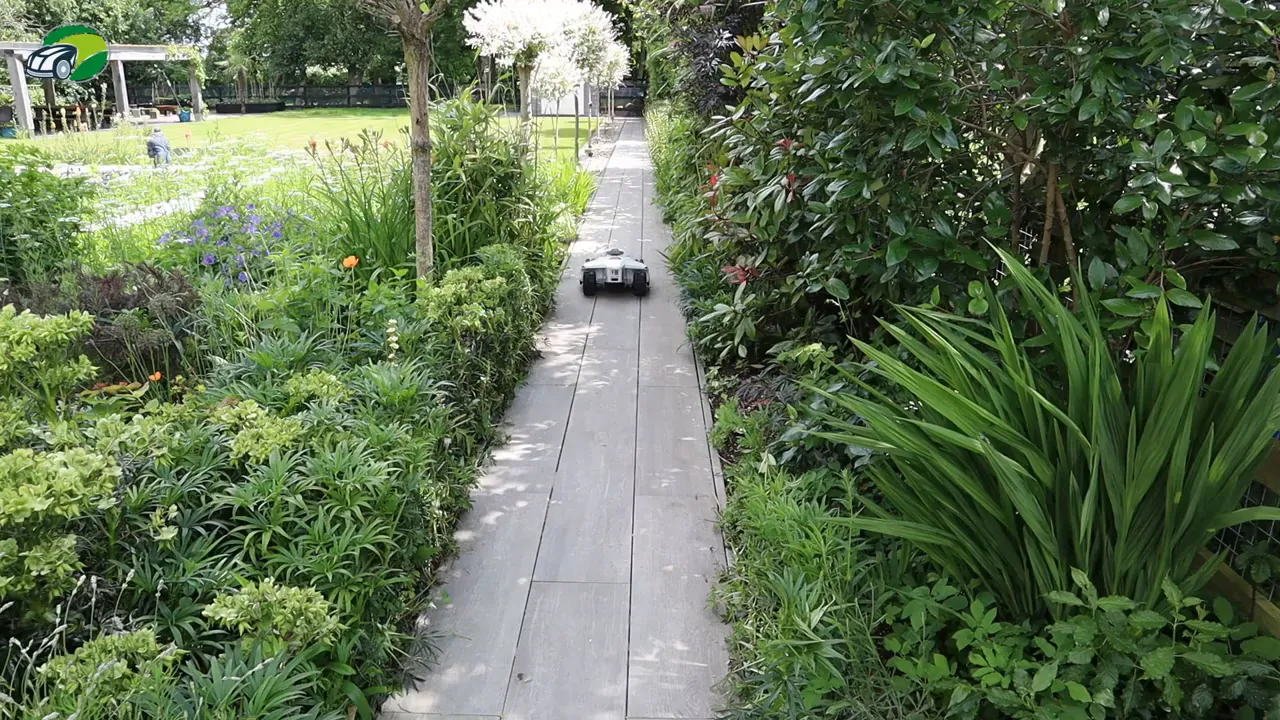

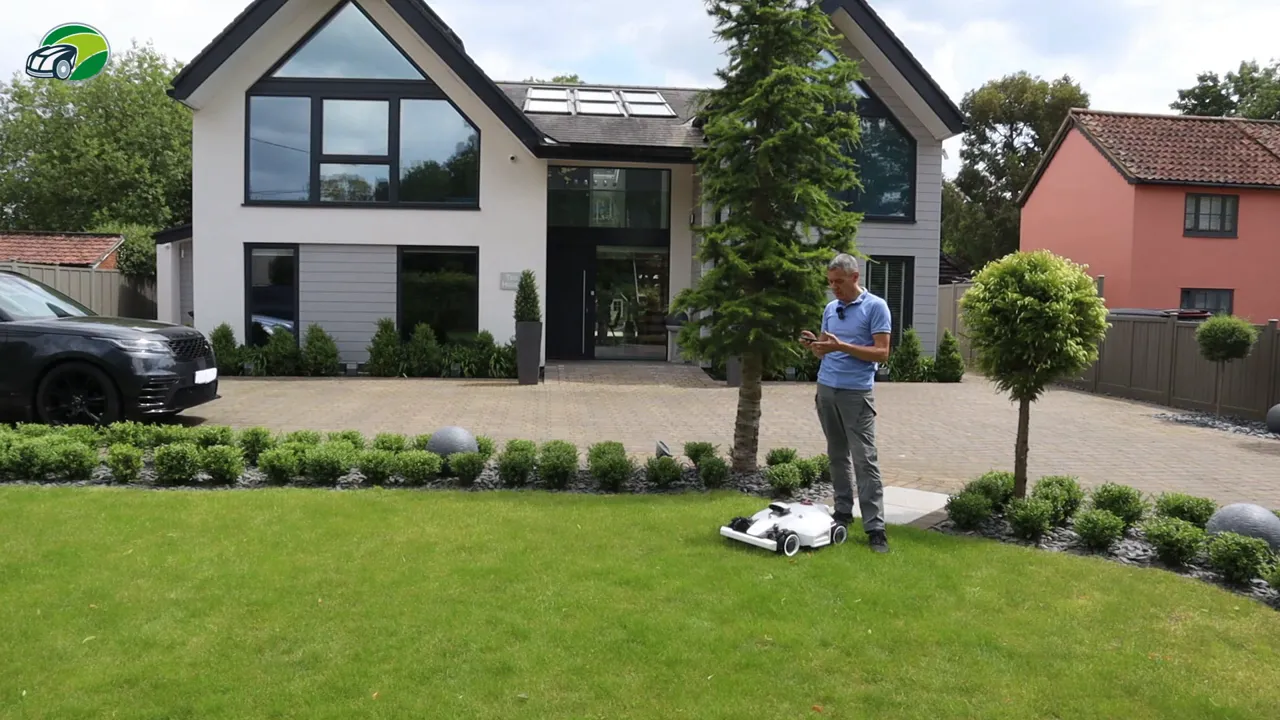

- Create channels (passageways) between zones. I created a channel down the side of the house so the mower could travel autonomously from rear to front.
- Create a channel from a zone to the charging station so the mower knows how to dock no matter where it is.
Mapping channels is intuitive: enter Channel planning and drive the mower along the path you want it to use. The more direct and obstacle-free the path, the more reliably the mower will follow it. If you need to relocate the charging station, there is a relocate function that updates the docking geometry without remapping all zones.
Docking and Relocate Function

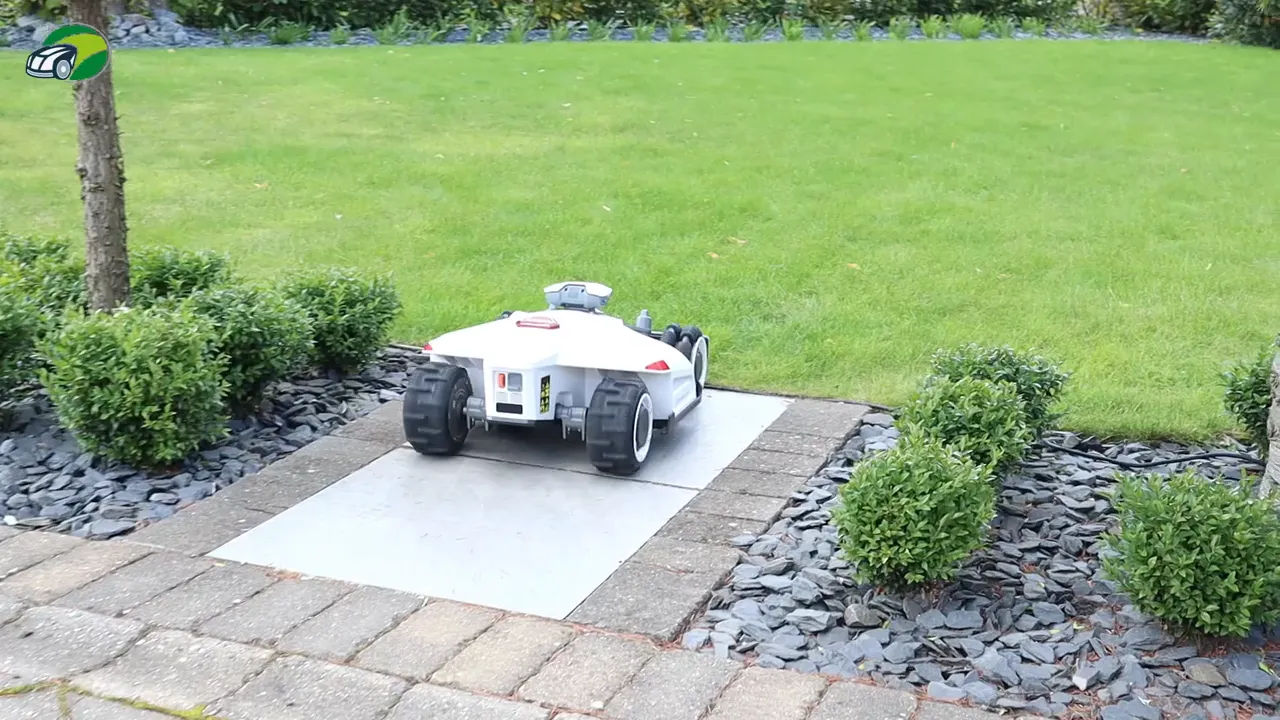

Docking is just as important as mowing. The Luba 2 uses a precise channel plus docking logic. On my trial the base sitting on the path required a brief adjustment — the mower’s first attempt nudged into gravel — but the relocate charging station feature in the app corrected the alignment perfectly. After that the mower reversed in and made clean electrical contact every time.
Omnidirectional wheels reduce scuffing and make fine alignment easier. Once the docking geometry is tuned, the docking routine is reliable and repeatable.
FPV and Obstacle Avoidance Tests

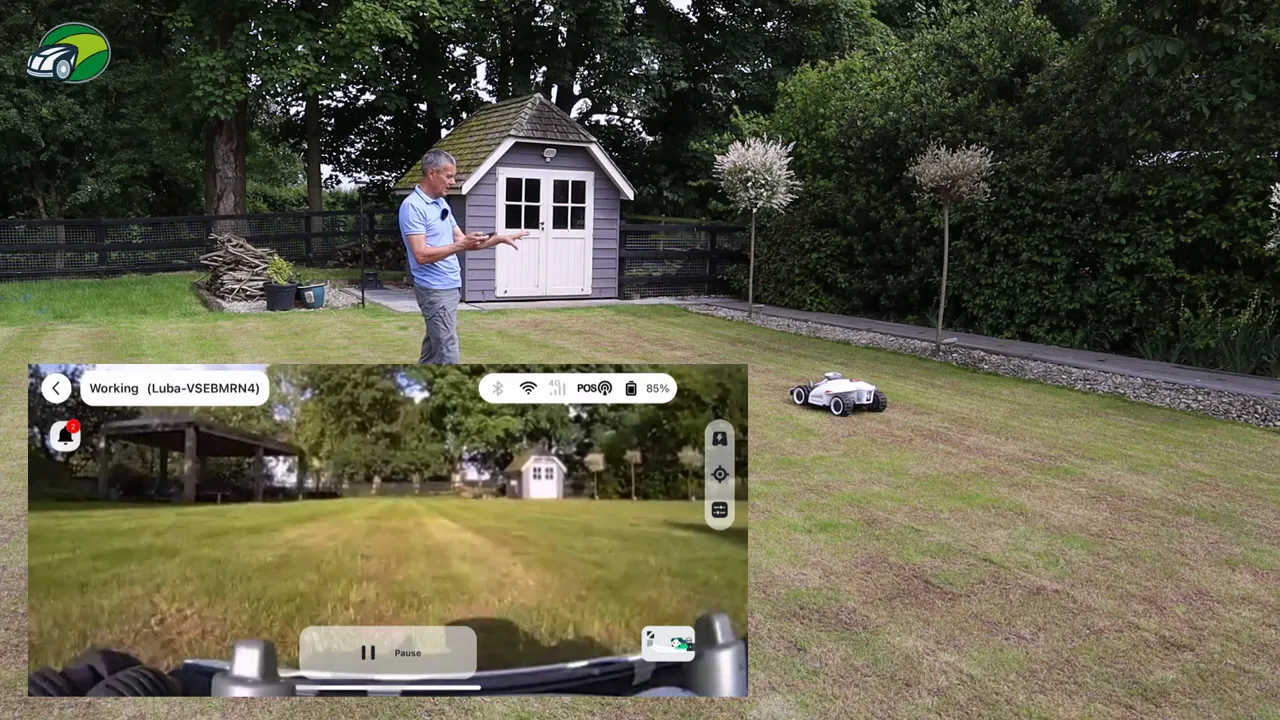

The binocular vision module doubles as a first-person view camera. From the app I can tap into this live feed to see what the mower “sees” as it operates. That proved handy during obstacle tests, and it’s a great monitoring feature if you want to see the mowing process remotely.

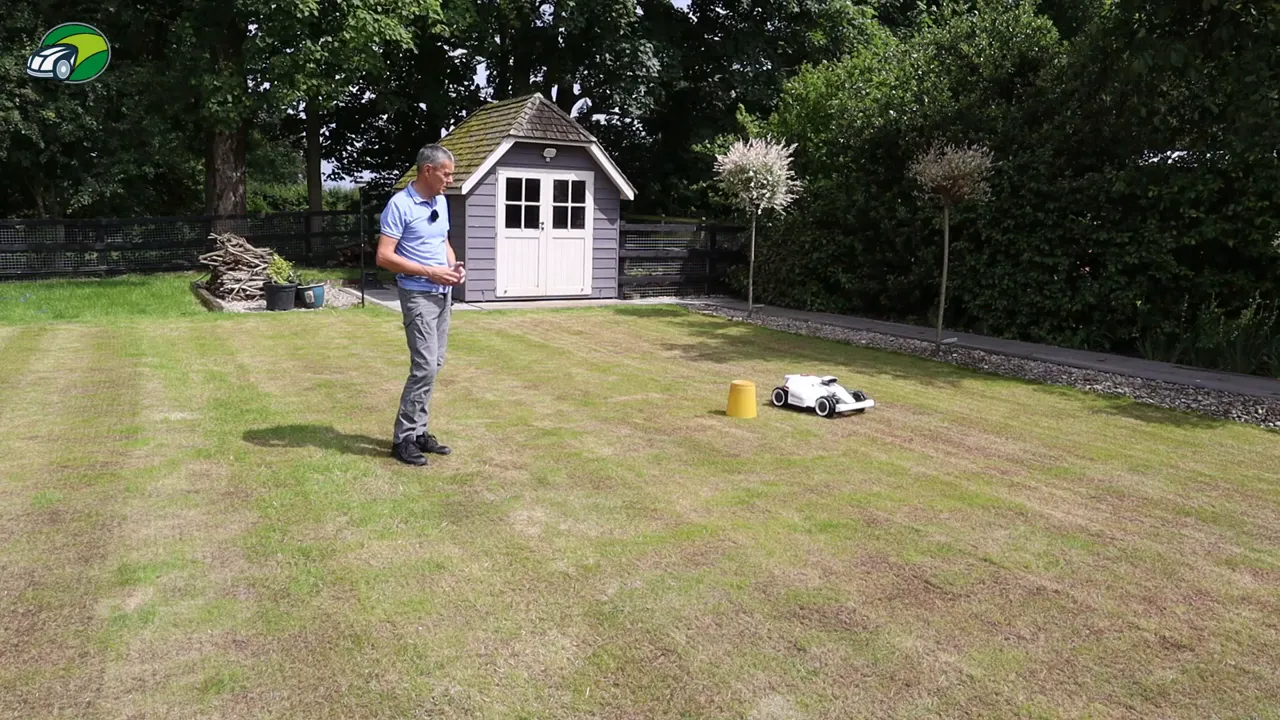

Obstacle avoidance works on three levels: ultrasonic sensors, the 3D vision module, and the physical bumper. The default obstacle sensitivity is conservative, so the mower slows and then navigates around obstacles if necessary. I tested with a bucket placed on the mowing path. In default (slow-touch) mode the mower slowed and nudged until it registered contact; after changing the setting to “no touch” the mower detected and rerouted around the bucket before any contact occurred.
That configurability is important. In a very crowded yard you may want more cautious behavior. In a minimal, open yard you can allow faster operation and tighter lines.

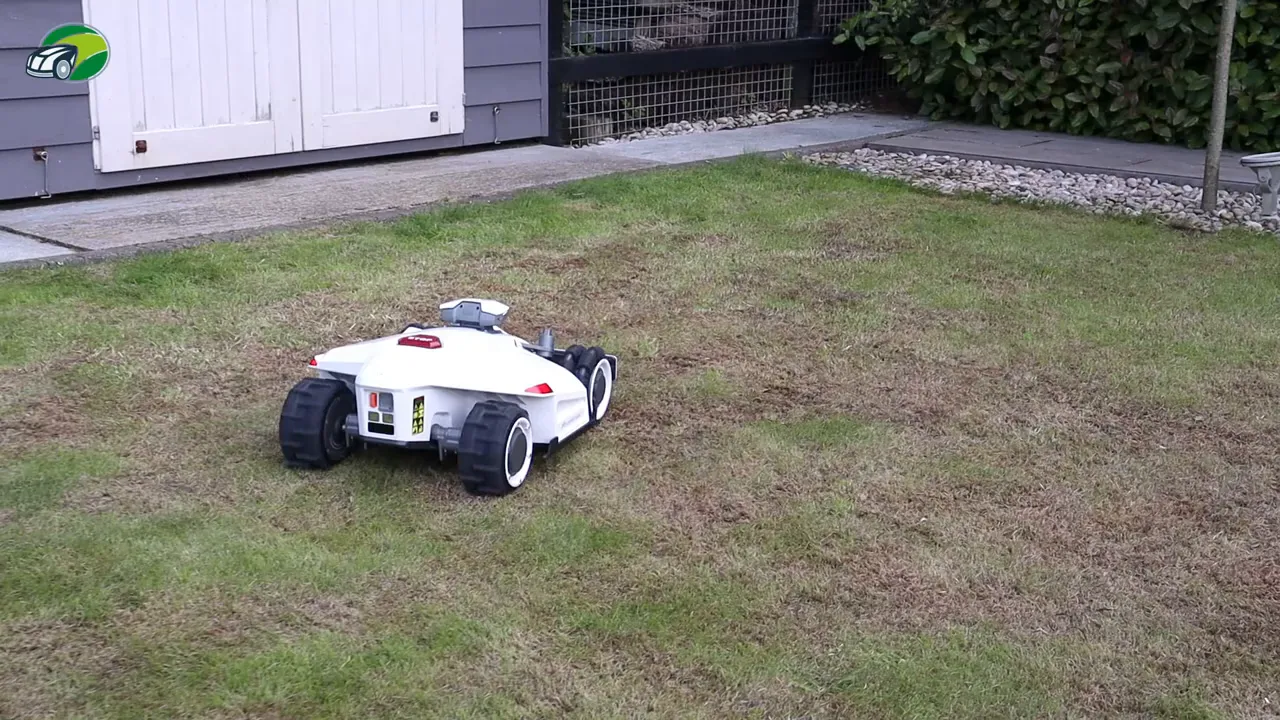

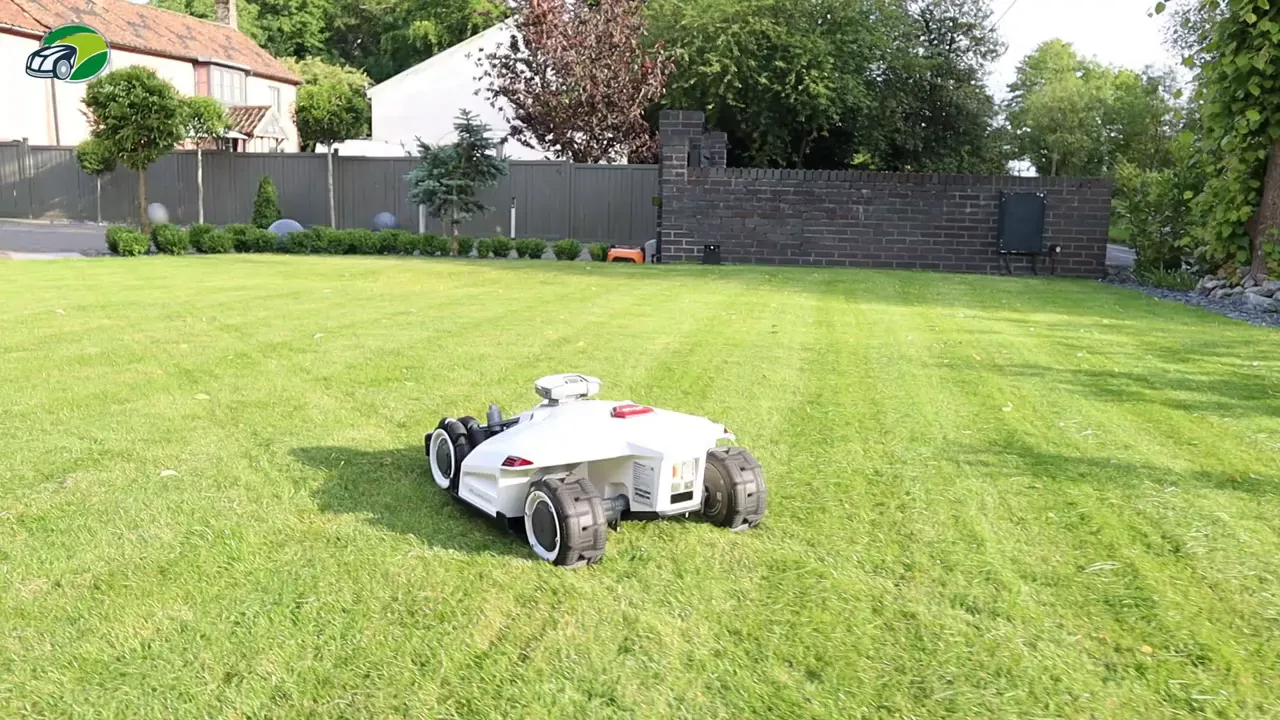

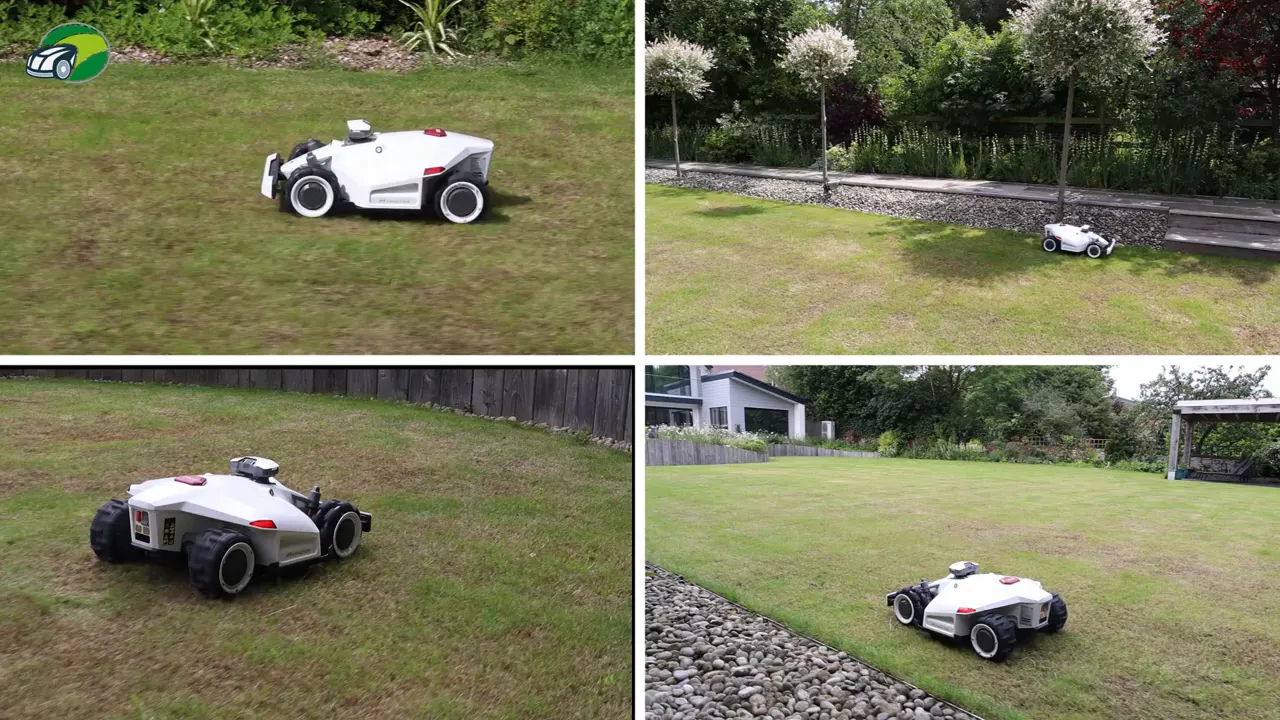

The Luba 2 handled both the tidy, short rear lawn and a longer, wilder front lawn with equal competence. Key impressions from extended runs:
- Cut quality: The dual-disc system produced a fine mulch on both short and longer grass. When set to 30 mm cutting height, the finish was even and consistent.
- Navigation: The mower moved cleanly along its zigzag pattern and used the channel correctly to travel between lawns. The deck raises when the mower is transitioning between zones to prevent blade strikes on hard surfaces.
- Noise and operation: The mower is quieter than a standard push mower and runs well at night if you schedule it so.
The mower also includes useful path spacing and angle controls in the app. You can change the cutting path from straight zigzag to cross patterns or angled lines, and you can adjust overlap spacing for dense or thin turf. All of these are available in the mowing session setup screen and are immediately reflected in the session time estimate.
Get Best Price Here
Maintenance, Support, and Value
Several practical maintenance and ownership points to keep in mind:
- Blade swaps: Frequent blade checks keep the cut neat. Luba 2 blades are inexpensive and quick to replace.
- Firmware updates: Expect and install occasional firmware updates. They usually improve navigation and add new features.
- Authorized service: For buyers in the UK, there is an authorized local service center to handle parts and warranty returns, which provides useful peace of mind.
- Long term value: Compared with some premium offerings that layer subscriptions and expensive add-ons, the Luba 2 is straightforward: buy the unit and optional accessories you need, keep it updated, and the system improves over time through free firmware updates.
Why Buy Luba 2 AWD? Who Is It For?
This is not a budget mower for casual lawns — it is a feature-rich machine built for homeowners who want advanced navigation, multi-zone management, steep-slope handling, and the ability to locate, monitor, and update the system remotely. If you have multiple lawns, a slopey garden, or you want to avoid the wire-laying chore altogether, the Luba 2 will likely be worth a close look.
If your yard is a single small rectangular lawn, a cheaper mower with boundary wire might still be the simplest option. But Luba 2’s combined RTK and vision approach scales better as complexity increases.
What’s Coming Next
Mammotion continues to iterate. In 2026 they plan to release LiDAR-guided models of the Luba Mini, which will add a point-cloud sensing layer to mapping and obstacle recognition. LiDAR will especially benefit very cluttered yards, low-light situations, and advanced landscaping tasks where precise spatial data can be used to create patterns, logos, and more elaborate mowing designs. Combine that with the already-announced feature roadmap — voice control, improved app integrations, and lawn “printing” capabilities — and the platform looks like it will only get more capable over time.
Quick Setup Checklist
- Choose an RTK station location with clear sky view.
- Secure the charging base — path placement is acceptable with careful alignment.
- Install the vision module and bumper, plug in power, and place the mower on the base for initial charge.
- Install the Mammotion app, add the mower via Bluetooth, and connect to Wi-Fi.
- Run firmware updates for both mower and RTK station before mapping.
- Map zones and create channels for paths and docking.
- Run a short manual mow to verify docking, obstacle handling, and edge cuts before committing to scheduled runs.
Frequently Asked Questions
Does Luba 2 need a boundary wire?
No. Luba 2 uses RTK GPS fused with binocular 3D vision to map and navigate your lawn, so there is no perimeter wire to lay.
How large an area can the AWD 5000 model handle?
The AWD 5000 will confidently mow up to 5,000 square meters of actual grass area. The area rating is for grass coverage, not travel area, so it represents the usable turf surface.
Will it work if the RTK station and the mower cannot see each other directly?
Yes. The RTK and the mower just need to be able to see the same satellite constellation. Line-of-sight is not mandatory between the RTK and mower. Elevating the RTK on a wall mount can help ensure consistent satellite visibility.
What happens when the mower loses satellite signal?
If satellite reception drops, the 3D vision module takes over navigation so the mower can continue to operate until RTK signals are restored.
Can the mower be controlled remotely?
Yes. The Mammotion app supports remote monitoring, configuration, firmware updates, and session control. There is also provision for 4G connectivity in the mower and Wi-Fi on the RTK for extended remote range.
Is there local support for warranty and parts?
There are authorized service centers in the UK and other regions depending on distribution. That provides a local option for spare parts and warranty handling.
How does Luba 2 handle edges and tight corners?

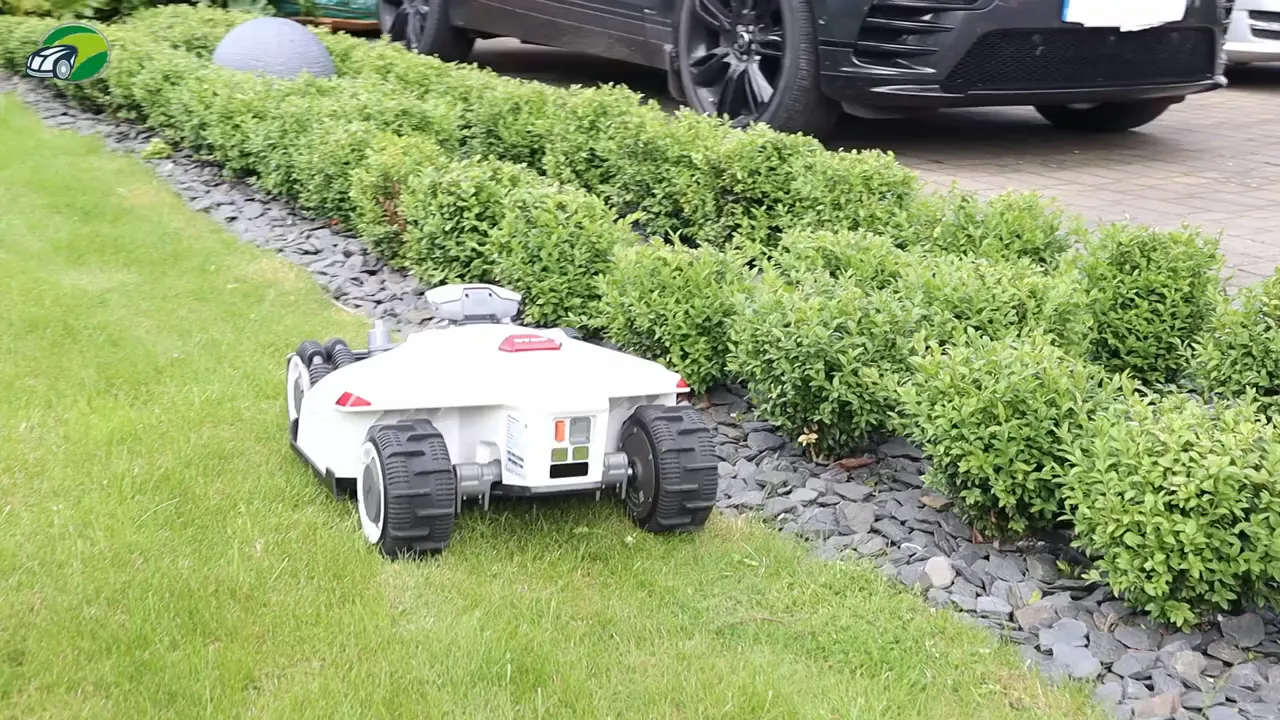

The mower uses repeated edge passes to gradually trim close to boundaries. For channels and narrow passes, you can create a dedicated channel during mapping so the mower follows a precise path.
When is the LiDAR-guided Luba Mini coming?
Mammotion has announced LiDAR-guided models of the Luba Mini for release in 2026. These will add a LiDAR sensing layer to improve mapping, object detection, and fine-grain spatial awareness.
Final Thoughts
The Luba 2 AWD is a compelling package for homeowners who want advanced, reliable robotic mowing without the hassle of boundary wires. The fusion of RTK positioning and 3D binocular vision solves many of the problems that single-mode systems struggle with. Firmware and app updates are frequent and meaningful, and the support options make ownership more comfortable in regions with authorized service centers.
On the practical side, pay attention to RTK placement, run the firmware updates before mapping, and plan your channels carefully if your garden has narrow paths or steps. Once configured, the mower is impressively autonomous: precise docking, tidy edges, robust slope handling, and predictable obstacle behavior.
If you want a lawn robot that evolves through software and is designed to handle complexity rather than avoid it, Luba 2 is one of the best options available in its class right now.
